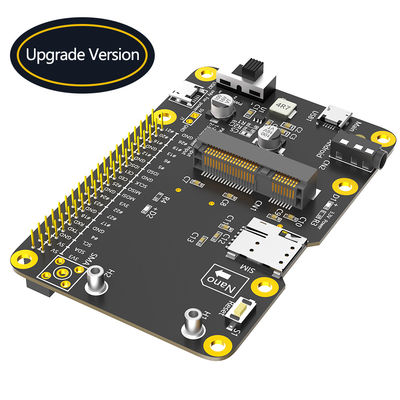

OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board

MOQ: 50-100PCS
Price: Negotiation
Standard Packaging: Electrostatic bag
Delivery Period: 10-15 work days
Payment Method: T/T, Western Union
Supply Capacity: 190000 Pieces per Month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
BQZYX
Model Number
ZYX133
Warranty:
1 Year
Certifications:
CE, FCC, RoHS
Input Voltage:
5V
Material:
Plastic
Connector Type:
Micro USB
Color:
Black
Package Contents:
Raspberry Pi Adapter, Micro USB Cable
Output Current:
2.5A
Weight:
50g
Output Voltage:
5V
Dimensions:
65mm X 45mm X 20mm
Compatibility:
Raspberry Pi 3 Model B+
Highlight:

OEM raspberry pi 3g 4g & lte base hat

,

Asus raspberry pi 3g 4g & lte base hat

,

OEM raspberry pi lte hat

Product Description

Product description:



1. Fully compatible with Raspberry Pi models that have the 40-pin GPIO header (4, 3, 2, B+).



2.Compatible the following brand Mini PCIe Modules.



Quectel: EC25/EC21/ EC20 /UC20/ LTE-EP06



Sierra :AirPrime MC Series



Telit: LM960,LE910V2,HE910,LE910CX



Huawei: ME909s-120,ME909s-821, and more



Simcom: SlM7100,SlM7230, and more



ZTE:ZM8620, and more



U-Blox:MPCI-L2 Series



Thales:PLS62W,mPLS8, mPLAS9



3.Compatible the following brand Boards



1. Raspberry Pi 4, 3, 2, B+



2. Asus Tinker Board



3.Rock 64*



4. Samsung ARTIK’s board



5. Latte Panda



4.Clip-in Mini PCIe socket compatible with worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage with regional or global modules which work with different frequencies & carriers.



5. MANO SIM Card socket can easily reachable on the upside of the HAT.



6.Can be used standalone with PC/Laptop over micro USB, without stacking with Raspberry Pi.



7.Efficient and low quiescent current power circuit can hold up to 3Amps.



8.Working temperature range: -40°C ~ 80°C.



Note 1: The Base HAT doesn’t need or has a driver. Rather The host computer(such as RPi, Asus Tinker Board) needs the driver of the compatible module that will be used with the Base HAT. For example, if you are using Quectel’s EC25 with the Base HAT, then your host device should have the driver for Quectel EC25. Nowadays, most of the Linux kernel comes with the required drivers installed as a result the modules are recognized.



Note 2: These compatibility list created by assuming you’ve connected the Base HAT to the device via USB. UART communication can be work with every device in the list easily which have 3.3V level UART port.



Note 3: We don’t recommend the usage of long and low-quality micro USB cables between Base Shield and Raspberry Pi. It causes data and power loss. Thus the cable included the package works greatly.





Package Content:



1x 3G/4G&LTE Base HAT.



1x UsB 2.0 to Micro UsB Cable.



1x Screw Driver.


8x copper nut.


8x M2.5 screw.


1x quick installation Guide.

OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board 0OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board 1OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board 2OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board 3OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board 4OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board 5OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board 6OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board 7OEM 3G 4G & LTE Base HAT For Raspberry Pi Asus Tinker Board 8

Tags:

lte pi hat,

pci nvme expansion card,

pcie nvme adapter
