Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0

MOQ: 50-100PCS
Price: Negotiation
Standard Packaging: Electrostatic bag
Delivery Period: 10-15 work days
Payment Method: T/T, Western Union
Supply Capacity: 190000 Pieces per Month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
BQZYX
Model Number
ZYX074
Features:
Converts 5V USB-C Power To 3.3V Output
Weight:
2.3g
Compatibility:
Can Be Used With Any USB-C Power Source
Efficiency:
Up To 95%
Dimensions:
25.4mm X 22.9mm X 5.1mm
Output Voltage:
3.3V
Protection:
Overcurrent And Overtemperature Protection
Input Voltage:
5V
Input Connector:
USB Type-C
Package Contents:
1 X Power Supply Breakout Adapter
Output Connector:
Breadboard-friendly 0.1
Maximum Output Current:
700mA
Highlight:

Adjustable breakout board psu

,

USB 2.0 breakout board psu

,

Adjustable breakout board server psu

Product Description
Specification

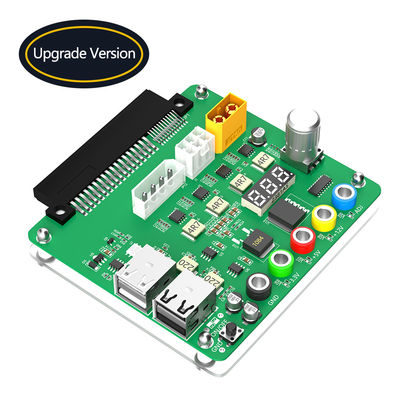

1,Product Name: Power Supply Breakout Board for Dell brand PSU

2,This power supply breakout board, with ADJ adjustable voltage knob, supports 3.3V, 5V, 12V and 1.8V-10.8V (ADJ) output voltage.

3,4 USB 2.0 ports design, supports QC 2.0/QC 3.0.

4,The voltage output terminals correspond to each screw terminal.

5,At the same time, the bottom panel is also equipped with an acrylic case kit for easy to use.

6,Compatible with 3.3V: STM32 MCU, network communication equipment, such as Wi-Fi Bluetooth and other devices, generally for microcontrollers, and some low-power modules, etc. 5V: Raspberry Pi, Banana Pi, Tinker Board, Nano Pi, USB interface, etc.

7,Compatible with 9V: Arduino, motor drive, display driver module, etc. 12V: motor drive, LED light, vehicle equipment with power requirements less than 24w, etc.

8,this board is only suitable for Dell brand PSU and the following model listed.

750 Watt Platinum Rated 94% Efficiency 110-240v:D750E-S1, DPS-750AB-2 A, 05NF18

D750E-S6, DPS-750AB-15B, 05RHVV

E750E-S1, 700-013536-0100, 00XW8W

F750E-S0, S-0750ADU00-101, 06W2PW

L750E-S0, PS-2751-13D-LF, 0W8R3C

750w Watt Titanium Rated 96% Efficiency 200-240v:D750E-S7, DPS-750AB-17 A, 0KNHJV

1100 Watt Platinum Rated 94% Efficiency 110-240V:D110E-S0, DPS-1100BB B, 0PR21C

E1100E-S0, AA26510L, 0YT39Y

L1100E-S0, PS-2112-4D2-LF, 038GYJ

L1100E-S1 , PS-2112-8D2, 09TMRF

1050w @ 100-120V input

1100w @ 200-240V input

2000 Watt Platinum Rated 94% Efficiency 110-240V:D200E-S2, DPS-2000EB-2 A, 0960VR

1000w @ 100-120V input

1750w @ 200-205V


Package Contents

1 x Board Adapter

1 x Screwdriver

5x male banana Plug

Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0 0Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0 1Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0 2Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0 3Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0 4Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0 5Adjustable Breakout Board PSU Server Power Supply USB 2.0 QC 2.0 6
